Adventa – The Specious Fume Hoods

This series offers the most optimized solution in fume hoods with a major advantage of horizontal space without compromising on any technical points.It comes fitted with all the latest generation next technology and aesthetics. We also offer many optional features developed by us, with great lower energy consumption and adds safety to your lab.

Inventa – High Performance Fume Hoods

Inventa EX and LX are our international range of fume hoods and incorporate the latest in fume hood technology. Inventa offers you components and fittings from top quality domestic / international vendors and LabGuard’s reputed workmanship. It also integrates next generating flow technology (Active Kinetics standard) excellent ergonomics as well as aesthetics and a choice between VAV airflow and Quantum airflow. Combining the best of all worlds, the Inventa range is your path to creating your dream lab.

PRX

Efficient and easy to maneuver

PRX – A local extractor that comes with many advantages;

  • Extremely easy to maneuver and great positional stability.
  • Unique knob for adjusting the friction joints by hand.
  • 360° swivel function.
  • Optimal hood for welding smoke and other hot pollutants.
  • Maximum capture efficiency and extraction.
  • Maximum reach.
  • Fumex basic principle of local exhaust ventilation is construction with external support arms, which provides for:
    • Low pressure drop
    • Low risk of clogging
    • The local extractor is supplied partially assembled for ease of installation.

PRG

Local extractor for industrial environment

Fumex PRG is based on the PR arm,  new technology combined with new materials and focus on design provides Fumex PRG many new and valuable benefits:

  • Uniquely maneuverable
  • Extremely stable position
  • Hood in PVC.

PRG is designed according FUMEX fundamentals:

  • External arm support
  • Natural and direct airflow means minimal pressure drop
  • Low risk of blockage

Partly assembled upon delivery, for simple installation.
PRG can be equipped with control gear for controlling fan/damper.
FUMEX PRG is available in lengths 2, 3 & 4 m.

TEX

Telescopic local extractor for confined workplaces

  • A compact extractor for welding booths and workbenches
  • Gas spring balances the weight of the arm
  • Flexible suction nozzle rotates through 360˚ and can be positioned at a 90˚ angle

TEX is designed based on Fumex’s basic principles:

  • External arm supports
  • Natural and direct airflow means minimal pressure drop
  • Low risk of blockage
  • Supplied pre-assembled for ease of installation

RX RF

Easy to maneuver and efficient Stainless steel local extractor

FUMEX RX RF is manufactured fully in stainless steel and has a reinforced PE hose for the best chemical resistance.

The smooth inside of the suction tubes makes the RX RF very easy to clean. Adjustments of joints, as well as, maintenance can easily be taken care of with hand tools from the outside.

  • Stainless steel
  • Easy to maneuver and positional stability
  • Gas spring balances the dead weight of the arm
  • Flexible suction nozzle rotates through 360˚ and can be positioned at a 90˚ angle

RX RF design is based on Fumex’s basic principles:

  • External arm support
    • Natural and direct airflow means minimal pressure drop
    • Low risk of blockage
  • Supplied partially assembled for ease of installation

The FUMEX RX RF is easy to install and can be delivered with brackets for ceiling mounting. Available in lengths 1.5, 2, 3 and 4 meters.

R/RZ EXHC

Corrosion-resistant local extractor for workplaces requiring safe handling of explosive gases and dust

Used in corrosive environments and manufactured entirely from stainless steel components:

  • Grounded structure
  • Full fills requirements for ATEX directive 94/9/EC category 2 for gases and dust
    • Zones 1 and 21
    • EX II 2 GD marking

The local extractor is designed based on Fumex’s basic principles:

  • External arm supports
    • Natural and direct airflow means minimal pressure drop
    • Low risk of blockage
  • Supplied assembled and tested

ME

The ideal extractor for laboratory environments

The unique joint design of the Fumex ME results in a very low pressure drop, which produces many valuable benefits:

  • Energy-saving
  • Lower noise levels
  • Less risk of disruptive ventilation noise
  • Low pressure drop without having to use a larger dimension system
  • Easy to combine with other extractors in the same ventilation system

The standard version is suitable for extracting most types of airborne pollutants in:

  • Laboratories
  • Schools, universities
  • Hospitals
  • The pharmaceutical industry
  • Hairdressing salons
  • The electronics industry

MiniTEX

For workplaces requiring the market’s lowest pressure drop

Suitable in environments where the extractor can be incorporated in the same extraction system as other products with a low pressure drop such as fume cabinets or existing ventilation systems.

  • Compact local extractor
  • Adjustable telescopic function
    • High air volume in the suction nozzle ensures effective capture of pollutants
    • Ideal for low ceiling and low-hanging light fixtures
  • A direct airflow and an absence of internal components results in a low pressure drop
    • This also minimizes the risk of noise problems
  • Easy to operate and position.

Terfu

Local extractor for workplaces requiring a high level of flexibility
The market’s broadest range of laboratory extractors is characterised by the following:

  • Easy to positioning to the pollution source
  • Positional stability
  • Supplied assembled for ease of installation

The standard version is suitable for extracting most types of airborne pollutants in:

  • Laboratories
  • Schools, universities
  • Hospitals
  • The pharmaceutical industry
  • Hairdressing salons
  • The electronics industry
  • Terfu’s joints contain ball bearings and have a large frictional diameter
  • Support springs balance out the weight of the arm
  • 360˚ rotation
  • Tight-sealing damper as standard

MEX AA

Telescopic local extractor for atom absorption apparatus
MEX AA is specially developed for the extraction of airborne pollutants at high temperatures generated from atom absorption apparatus.

DSK

Fume cabinet for an effective capture of airborne pollutants by enclosure
DSK is a fume cabinet adapted for working with multiple sources of pollution simultaneously, such as:

  • Encasing an apparatus
  • Working with open chemical containers
  • Gluing

The design allows a clear view of the work area, and the cabinet can easily be moved when tasks or locations change.
DSK comes in two standard sizes (DSK 400/DSK 700), and can also be adapted to specific needs.

FB

Developed for use with particle-rich air

Fumex new fan FB is adapted to the specific requirements of local exhaust ventilation systems and evacuation of gases, smoke and small particles. For example in

  • Welding
  • Vehicle exhaust gases

Developed with a strong focus on performance and design

  • For airflows from 200 m³/h to 11 000 m³/h

High total efficiency that meets the requirements of ErP 2015:

  • High energy efficiency, sustainability and carbon reduction

There are a number of accessories available for the FB range to make installation and use easier and more efficient.

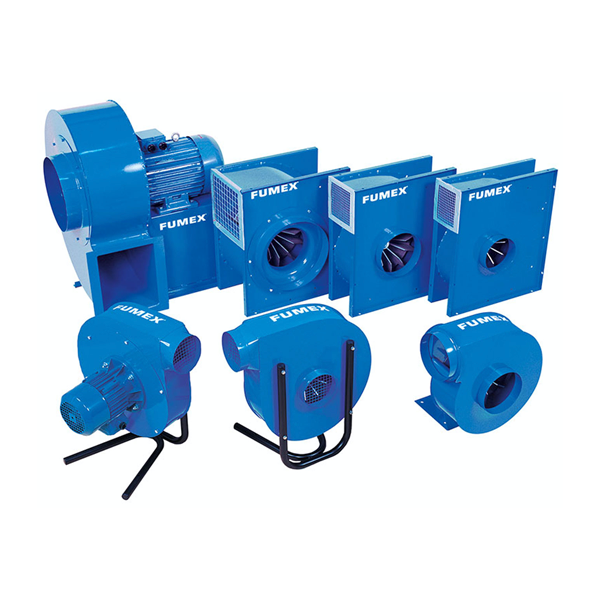

F

Developed for use with particle-rich air
Fumex fans are designed to comply with the specific requirements applicable to local extraction systems.
For use with air that is contaminated with high concentrations of dust Welding:

  • Vehicle exhaust gases

Self-cleaning impeller with straight blades:

  • Dust will not adhere to the fan’s blades
  • Reduced risk of imbalance and damaged bearings
  • Minimal risk of spark formation

LF

Portable, flexible filter unit for temporary work solutions

Suitable for use in working environments requiring the filtration of particles such as solder smoke. The filter can also be fitted with activated carbon for the filtration of everyday odors and certain chemical fumes. Can also be used with:

  • Precision welding (TIG)
  • Laser marking
  • Conservation
  • Nail salons

CFE

Dust filter for large airflows

CFE is suitable for filtration of dry particles, dust and welding smoke for mechanical industry.
The filter is manufactured with 2, 4, 6 and 8 horizontally placed filter cartridges for airflows from 1000m³/h to 12000 m³/h. For larger airflows more filters can be placed parallel and/or serial in the same system.
Continuous self-cleaning of the filter cartridges with efficient power pulse valves and aerodynamically designed deflectors significantly increases the life span of the filter media. The filter can be cleaned during operation and/or through cleaning cycles when the plant is not in operation.
All components for controlling the cleansing are placed internally on the clean air side, well protected from any outside impact.
When changing the filter there is a system allowing filter replacement without contact with the dirty filter.

CFE overall;

  • Models with 2, 4, 6, and 8 horizontal cartridges
  • Airflows from 1000 m³/h to 12000 m³/h
  • Can be placed parallel and/or serial in the same system
  • Self-cleaning with power pulse valves
  • Aerodynamically designed deflectors
  • Significantly increased life span of the filter media

CV

A flexible modular filter for particles and gas

The modular filter CV provides the opportunity to meet many different needs with several functions in one product.

The modular structure provides maximum flexibility for both gas- and particle filtration, from simple disposable filters to more customized solutions. CV can also combine gas and particle filtration in the same system.

Particle filtration allows for compressed air cleaning.
The modular filter is primarily dimensioned to handle fumes from one work station, but several filters can be parallel connected to serve several work stations in the same system.
The filter unit is wall mounted and the sturdy profile makes the installation easy, but also simplifies necessary service and maintenance.

OF

Modular oil mist filter

Oil mist filter with 2- and 3- stage filtration of oil and emulsion mist created through, for example:

  • Lathe turning
  • Milling
  • Drilling
  • Wet grinding
  • Spark suppression

OF is developed for airflows from 400 – 8000 m³/h and built in accordance with the modular principle, which for example yields the following advantages:

  • Several modules can be assembled into larger units
  • Easily expanded with additional modules as needs change
  • User-friendly and requires little maintenance

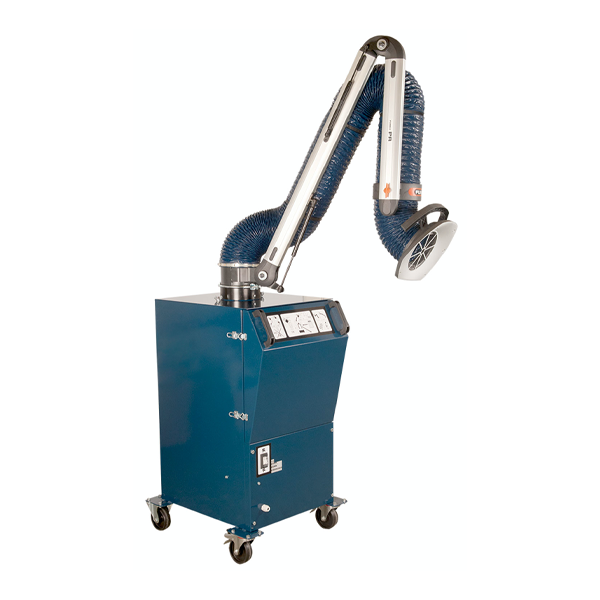

MF

Mobile filter for welding smoke and fine dust in temporary workplaces
 A flexible filter for use in temporary welding operations

  • High cleaning efficiency
  • Powerful extraction capacity

VF

Wall mounted filter for welding smoke and fine dust in temporary workplaces

  • A flexible filter for use in temporary welding operations
  • High cleaning efficiency
  • Powerful extraction capacity

SF

Portable welding filter for use in temporary workplaces requiring a high separation efficiency

Welding smoke contains large quantities of very small and harmful particles for which a very high separation efficiency is required. The Fumex welding filter satisfies this requirement:

  • For temporary workplaces
  • Filtering occurs in three stages
  • Full range in three sizes

Control units – local extractors

Control units for improved working environments and lower energy consumption

Control units comprise specially adapted and tested components. A well designed system provides important benefits for the user:

  • Automatic systems provide energy savings
  • Lowest possible noise level
  • The control voltage is 24V

To help find the right system, a number of ready solutions are available, including:

  • Fan start and stop, with/without speed control
  • Fan start and stop, with switch
  • Individual damper control, plus fan start and stop via switch
  • Individual damper control, plus demand-based fan control via a pressure sensor and frequency converter

Control can be manual or automatic, with or without time delay.

Control units – vehicle exhaust gases

Control units for improved working environments and lower energy consumption

Control units comprise specially adapted and tested components. A well designed system provides important benefits for the user:

  • Automatic systems provide energy savings
  • Lowest possible noise level
  • The control voltage is 24V

To help find the right system, a number of ready solutions are available, including:

  • Fan start and stop, with/without speed control
  • Fan start and stop, with switch
  • Individual damper control, plus fan start and stop via switch
  • Individual damper control, plus demand-based fan control via a pressure sensor and frequency converter

Control can be manual or automatic, with or without time delay.
